Outdoor gates need to be strong and resilient. When left unguarded, they can be vulnerable to exploitation or vandalism, allowing intruders to gain unauthorized access. But imagine solving these security challenges without paying the high costs associated with European brands.
How can a Full-height Turnstile be circumvented?
If an intruder halts the arm just before it locks after an authorized person exits, they can reverse the rotation and gain unauthorized access. Even more concerning, this loophole can be exploited repeatedly, allowing unlimited entries without the need for a guard on-site. To address this, our full-height turnstile is equipped with the MAG SLAR (Single-Level Anti-Reverse) lock design, effectively preventing this vulnerability.
Designed for Extended Durability and Performance

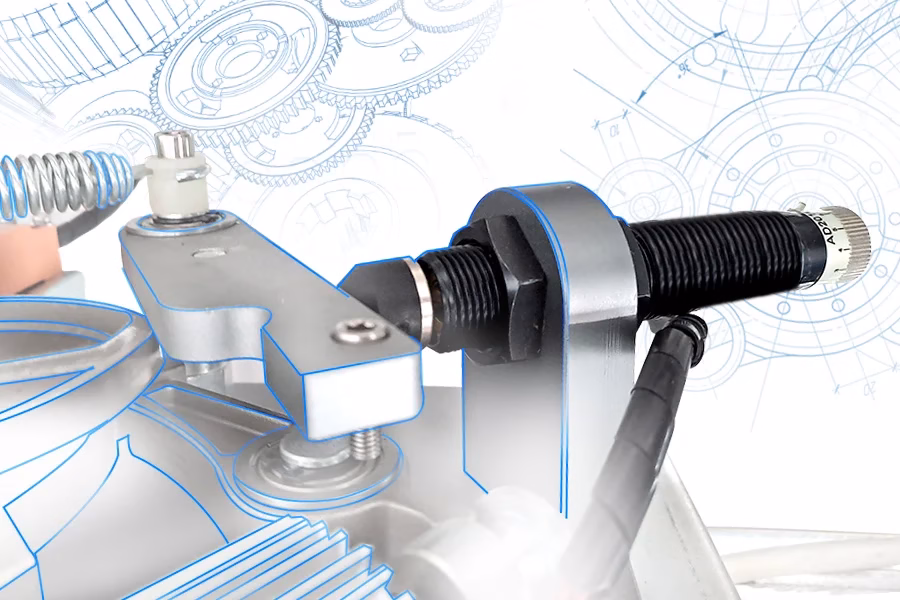

Designed to work harder and last longer, our heavy-duty shock absorber minimizes impact and vibration from rotational momentum, reducing mechanical wear and lowering maintenance costs.
Stay Secure while Maintaining Safety
You can manually unlock the turnstile during power failure to allow free arm rotation for a fast escape.
Lower Transportation Costs

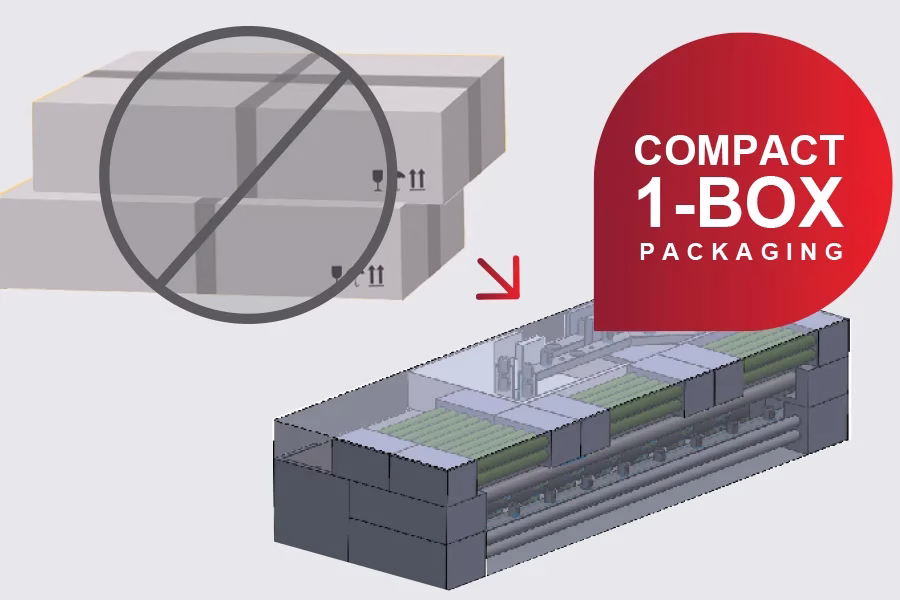

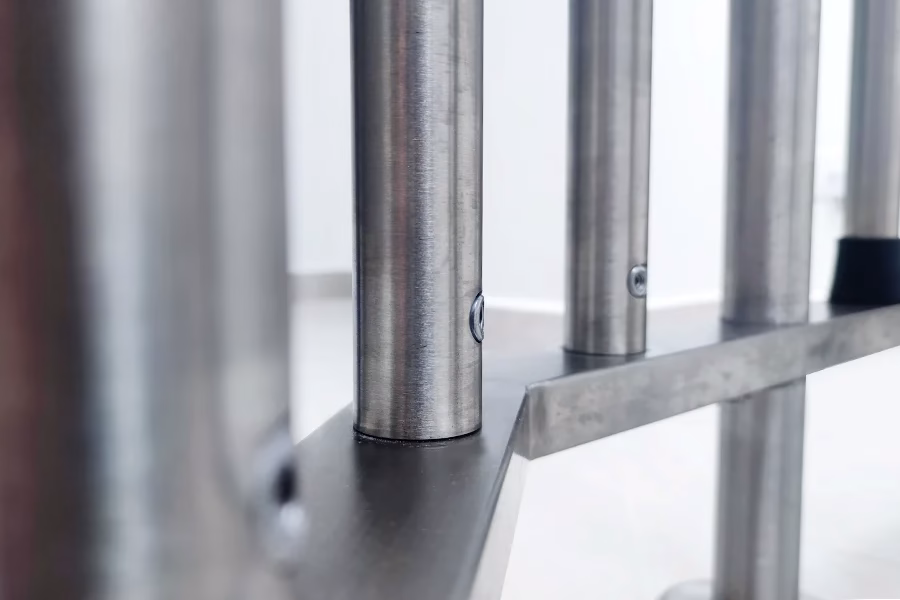

The tripod arm is the largest component in shipping. To reduce transportation costs, we’ve designed the arm in three pieces, allowing for easy assembly on-site.
Streamlined for Your Project Schedule
Unforeseen delays can happen in any project, and you might be concerned about storage or penalty costs if the gate arrives too early or too late. With MAG, you don’t have to worry. We maintain stock and you can collect the gate whenever your site is ready. Each gate is fully QC tested per our ISO9001 procedures before collection.
Achieve top-tier outdoor entrance security at an affordable price. Contact us now for more information.
Site implementation:
Specification:
| Description | Parameter |
|---|---|
| Body Material | SS304 stainless steel |
| Dimension | 1630mm(L) x 1580mm(W) x 2300mm (H) |
| Passage Width | 630mm |
| Arm Rotation Angle | 120° |
| Optimal Flow Rate | 20 to 25 people per minute |
| Power Supply | AC220/110V ±10%, 50/60Hz |
| Power Consumption | 60W |
| Operating Voltage | 24V DC |
| Working environment | Indoor and well-shaded outdoor application |
| Working Temperature | -25℃ – 70℃ |
| Relative Humidity | ≤ 90%, non-condensing |
| Open Signal | Dry contact signal |
| Fire / Emergency Alarm | Unlock and free for passing |
| IP Rating | IP 52 |
| MTBF | 5 million cycles |
